Zyx ultimate astro 1 ohm mc pikap iğnesi high end

?SOUNDATHOME Firması 13 Senelik Hifi-High End-Ultra High End Tecrübesiyle Soundathome - Soundathome II Adlı Mağazalarda Tam 7/24 Gönülden Hizmet Vermektedir.

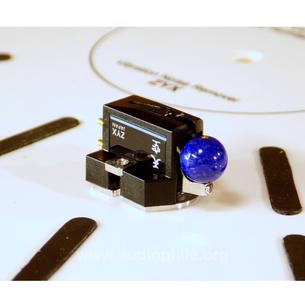

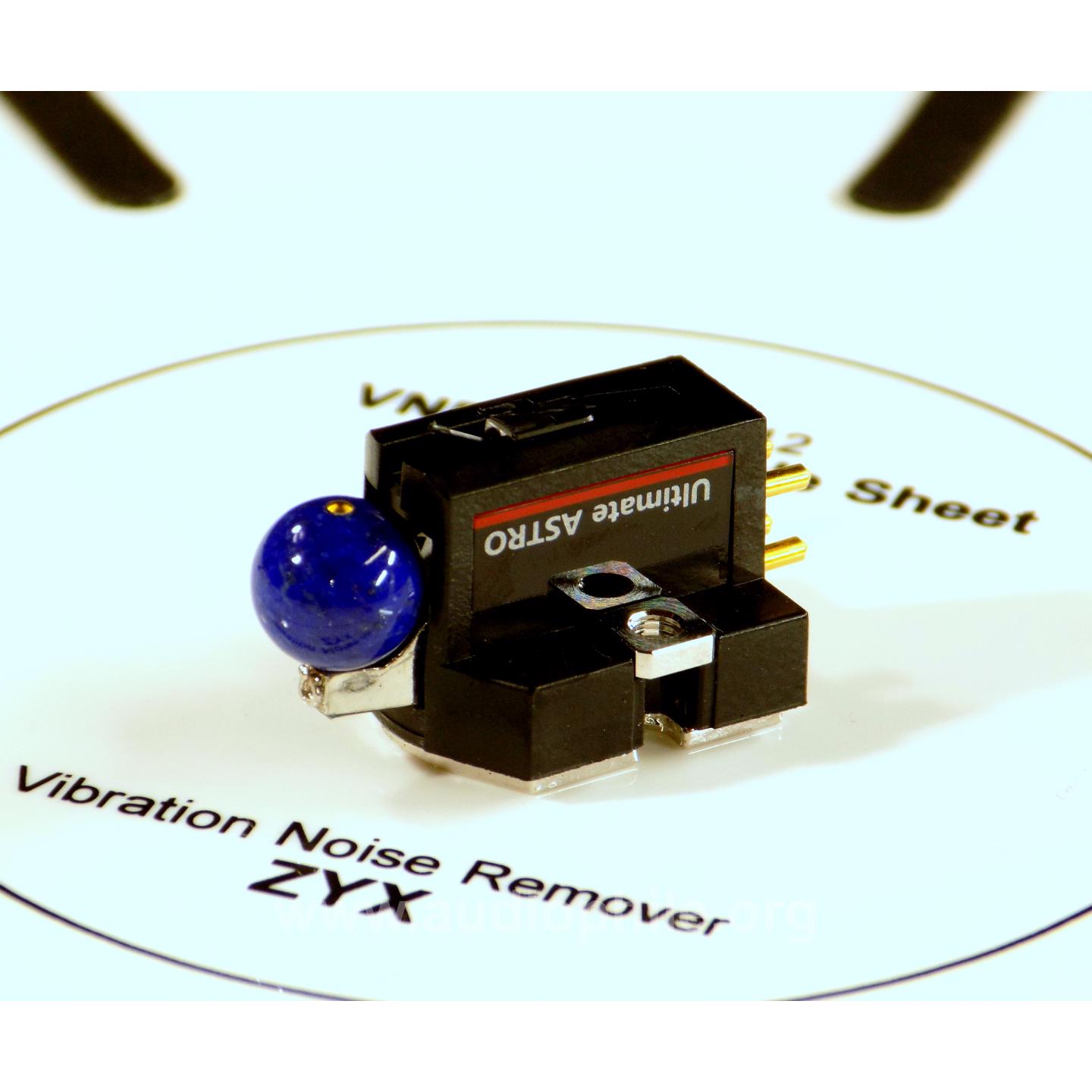

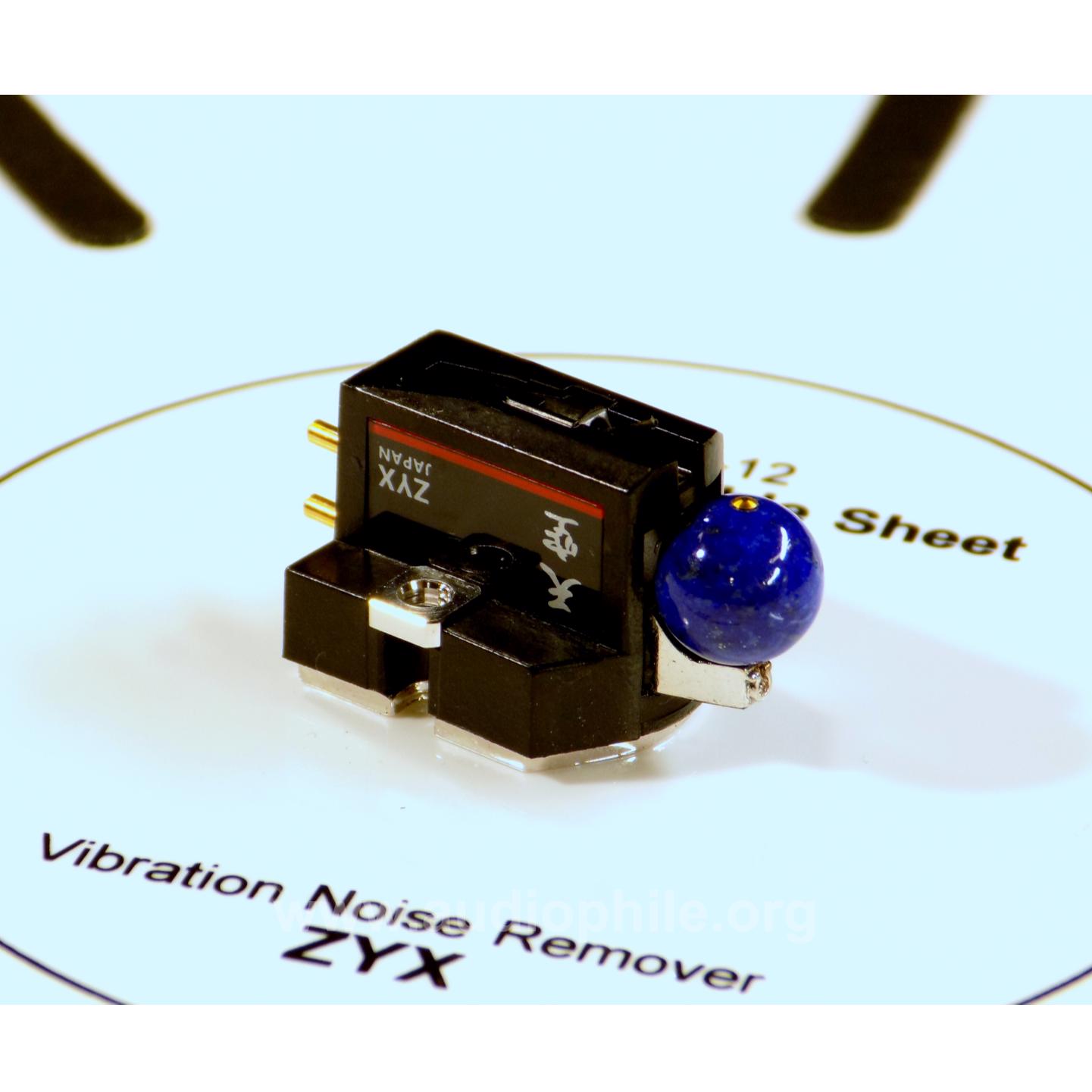

ZYX Ultimate Astro 1 Ohm MC Kafa-İğne

Sıfır Üründür. Stoktan Teslim.





Technical Data
Type	Moving Coil (Dynamic) “REAL STEREO” Generator System
Cryogenic Treatment	Temperature: -196 ? (-320?F)
Output Voltage	0.12mV (3.54cm/sec, 1kHz)
Frequency Response ±1dB	10 Hz - 100 kHz 20 Hz - 20 kHz
Channel Separation	> 30dB ? 1kHz ?
Channel Balance	< 0.5dB ? 1kHz ?
Recommended Tracking Force	2.0gm ? 20 ?C-25 ?C ?
Tracking Force Range	1.7gm - 2.5gm
Trackability	>60μm /2.0gm
EQ Compliance horizontal   vertical	15×10-6cm/dyne 12×10-6cm/dyne
Internal Impedance	1.0 Ω
Load Impedance	> 100Ω
Coil Wire X type   S type   G type	6N Crystal Copper φ 0.035mm 5N Silver φ 0.035mm K24 Gold φ 0.035mm
Cantilever Material	C-1000 Carbon φ0.30mm
Stylus	Micro-Ridge Solid Diamond?0.1mm
Contact Radius, Life Time	3μm×60μm, 2000Hour/2.0gm
Output Terminals	φ1.25mm K18 Solid Gold ?EIA?
Terminal Board	Composite Carbon Plate
Dimensions	16.8mm(W)×25.0mm(L)×16.5mm(H)
Net Weight	7.9gm(TB2 pre-mounted), 9.1gm(SB2)



Alıcıya Fatura Kesilecektir.


Saygılarımla,

Soundathome & Mustafa Bayram
